Bionic Apparatus For Fluorescent Light Estimation

Overview

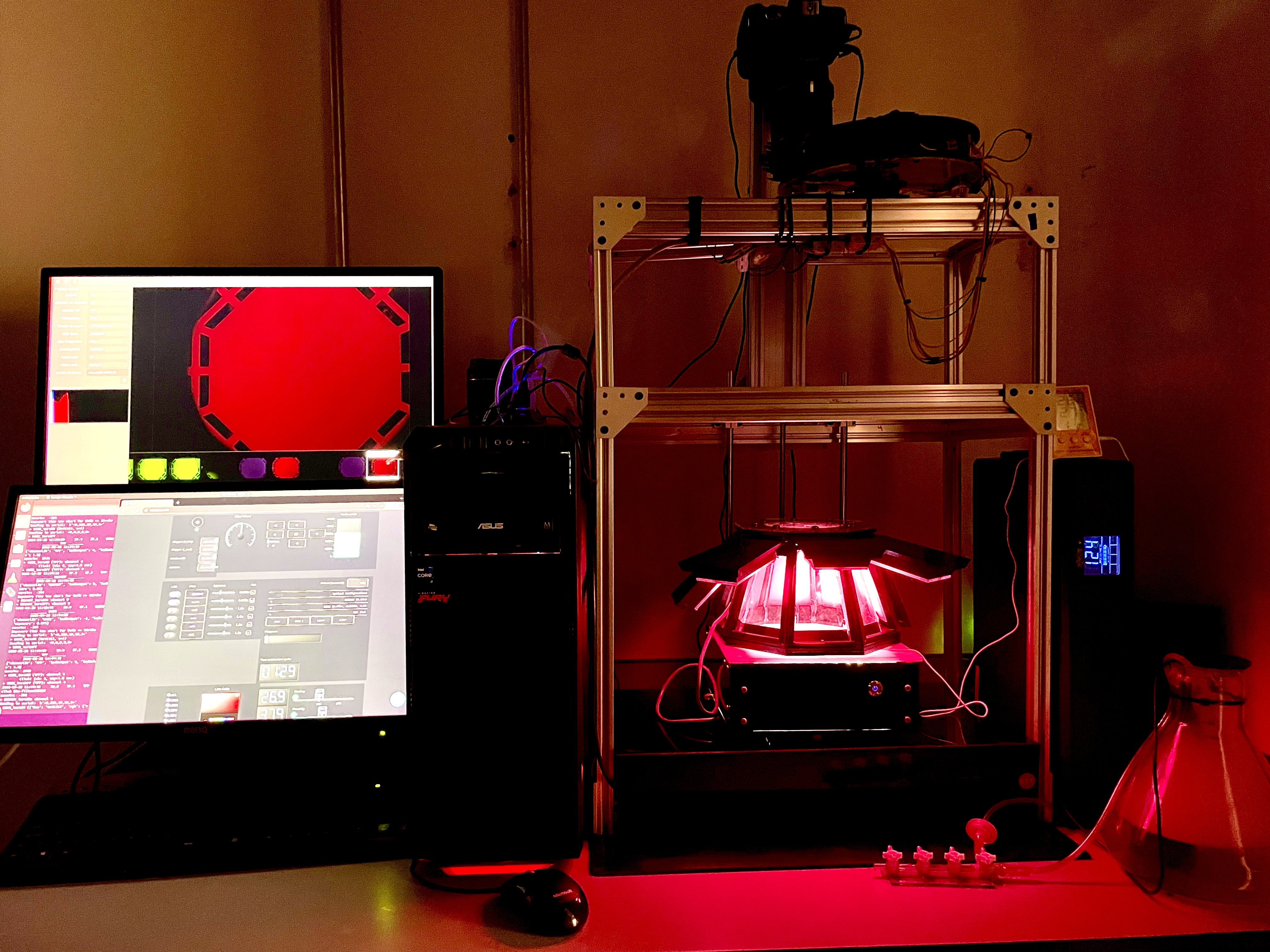

Here you can find the instructions for assembling a low cost and open source opto-mechanical device with the aim of acquiring multi-channel time-lapse images of bacterial colonies growing in agar plates.

This device uses a system of addressable LEDs and fluorescence filters to estimate the spatio-temporal distribution of different fluorescently-tagged sub-populations from time-lapse images obtained using a standard DSLR camera with a macro lens.

Getting Started

You can see the full project in this manuscript [link].

The repository with hardware design files, code and materials can be found here.

Prerequisites

To assemble this device you need access to a laser cutter and a 3D printer. You also need a PC and a digital camera. The complete list of materials, electronics and parts can be found here.

You will also need the following tools:

• 3mm Allen Key

• Screw drivers

• Soldering station

• Cutting pliers

• Wire stripper

• Multimeter


Authors

Systems Biology Lab, CCG-UNAM

Acknowledgements

We thank the help and input from past and present members of the Systems and Synthetic Laboratory at CCG-UNAM.
